FV-Kupplung C

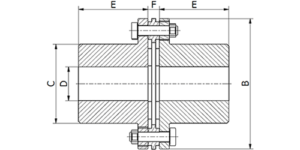

| TKN Nm | TKMax Nm | Speed Rpm-max | ΔKw (°) | ΔKa (mm) | Ø bore Max-mm | B (mm) | C (mm) | E (mm) | F (mm) | 2D PDF 3D STEP |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4C-70 | 160 | 320 | 4600 | 1,0 | ±2.5 | 38 | 90 | 50 | 40 | 8,8 | Download |
| 4C-80 | 350 | 700 | 4400 | 1,0 | ±3.0 | 42 | 105 | 56 | 45 | 11,6 | Download |
| 6C-95 | 650 | 1300 | 4200 | 0,7 | ±2.6 | 55 | 120 | 72 | 60 | 11,6 | Download |
| 6C-110 | 900 | 1800 | 4000 | 0,7 | ±2.9 | 65 | 135 | 82 | 70 | 11,6 | Download |
| 6C-120 | 1300 | 2600 | 3900 | 0,7 | ±3.1 | 70 | 148 | 86 | 80 | 11,6 | Download |
| 6C-135 | 2500 | 5000 | 3800 | 0,7 | ±3.4 | 80 | 170 | 100 | 90 | 15 | Download |
| 6C-158 | 2900 | 5800 | 3600 | 0,7 | ±3.8 | 95 | 196 | 115 | 100 | 15 | Download |
| 6C-176 | 5000 | 10000 | 3500 | 0,7 | ±4.1 | 100 | 220 | 125 | 110 | 17 | Download |
| 6C-186 | 6000 | 12000 | 3400 | 0,7 | ±4.3 | 110 | 226 | 136 | 120 | 17 | Download |
| 6C-200 | 6500 | 13000 | 3200 | 0,7 | ±4.5 | 120 | 240 | 146 | 125 | 17 | |
| 8C-210 | 9000 | 22000 | 3100 | 0,5 | ±2.0 | 135 | 275 | 155 | 140 | 17 | |
| 8C-230 | 15000 | 30000 | 3000 | 0,5 | ±2.2 | 150 | 296 | 176 | 160 | 20 | |
| 8C-245 | 21000 | 42000 | 3000 | 0,5 | ±2.3 | 150 | 296 | 190 | 160 | 20 | |
| 8C-262 | 25000 | 50000 | 2900 | 0,5 | ±2.5 | 160 | 297 | 200 | 180 | 20 | |
| 8C-283 | 33000 | 66000 | 2800 | 0,5 | ±2.8 | 170 | 345 | 220 | 190 | 24 | |
| 8C-300 | 40000 | 80000 | 2500 | 0,5 | ±3.0 | 185 | 365 | 235 | 210 | 24 | |
| 8C-320 | 50000 | 100000 | 2300 | 0,5 | ±3.2 | 200 | 390 | 248 | 225 | 26 | |
| 8C-350 | 65000 | 130000 | 2100 | 0,5 | ±3.5 | 220 | 420 | 270 | 250 | 27 |
